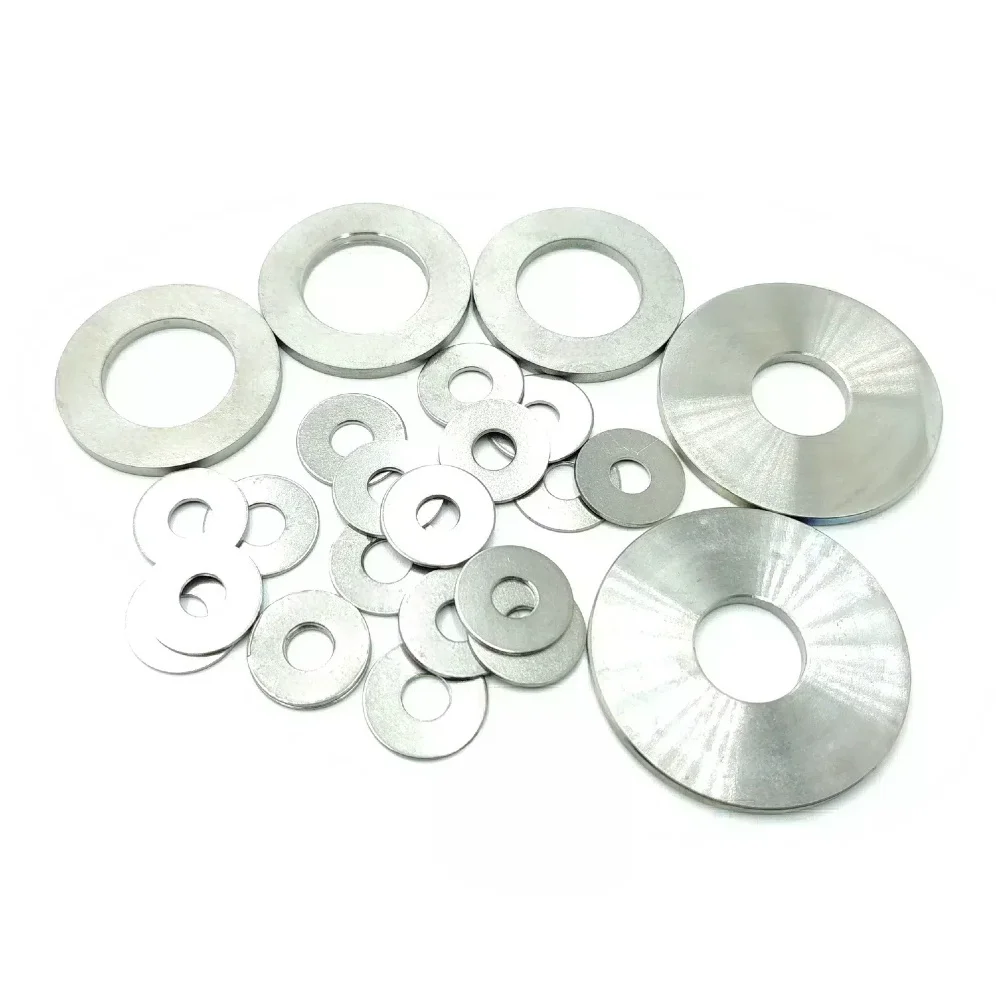

Titanium Fender Washers TW-03

Material	Ti6AI4V (Gr.5) Titanium
Washer Type	Fender Washer
size	1/8×5/8~1/2×2-1/2
For Thread size	1/8″~1/2″
Thickness	0.065″
Standard	ASME/ANSI B 18.21.1
Color	Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color

Categories:Titanium Fasteners, Titanium Hex Head Bolts

Description
Specification

Titanium Fender Washers Specs
Washer Type	Fender Washer	Material	Ti6AI4V (Gr.5) Titanium/Custom	Quality Control	100% Fully Check
Size	1/8×5/8~1/2×2-1/2	Outside Diameter	5/8″~2-1/2″	MOQ	Items in Stock (China):MOQ 1 PC Items in Stock (USA):MOQ 1 PC Items Out of Stock: MOQ 100 Pieces
For Thread size	1/8″~1/2″	Thickness	0.065″	Customizable Colors	Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color
Standard	ASME/ANSI B 18.21.1	LOGO	Customizable	Surface Treatment	Pickling/Polishing/Anodizing/PVD Coloring

Why Choose Our Titanium Fender Washers?

1.Distinctive Design for Wide Distribution:

Our Fender Washers are characterized by their wide diameter and low profile, distributing load evenly across surfaces to prevent damage and improve hold-down reliability.

2.Benefits of Titanium:

Utilizing Gr5 titanium as the material base, our washers offer a combination of lightness and robust strength, resisting corrosion exceptionally well, even in marine and industrial environments.

3.Personalized Customization:

We excel at producing customized Fender Washers, accommodating various thicknesses and diameters to suit specific applications, ensuring optimal performance and fitment in every scenario.

4.Features of Titanium Fender Washers Material:

– High Strength and Low Density: Offers an excellent strength-to-weight ratio.

– Excellent Corrosion Resistance: Suitable for use in harsh environments.

– Good Thermal Resistance: Maintains performance at high temperatures.

– Low Temperature Resistant: Retains toughness and mechanical properties even in cryogenic conditions.

– Nonmagnetic and Nontoxic: Ideal for applications with high safety requirements.

– Good Coefficient of Thermal Expansion: Maintains stable dimensions and shape.

– Low Elastic Modulus: Provides a certain degree of elasticity and impact resistance.

Size		1/8×5/8	1/8×3/4	5/32×7/8	3/16×3/4	3/16×1	3/16×1-1/4	3/16×1-1/2	1/4×1	1/4×1-1/4	1/4×1-1/2	1/4×1-3/4	1/4×2	5/16×7/8	5/16×1	5/16×1-1/4
d	Nominal Size	0.16	0.16	0.19	0.19	0.19	0.19	0.19	0.285	0.285	0.285	0.285	0.285	0.348	0.348	0.348
	min	0.15	0.15	0.182	0.213	0.213	0.213	0.213	0.275	0.275	0.275	0.275	0.275	0.338	0.338	0.338
	max	0.17	0.17	0.201	0.233	0.233	0.233	0.233	0.295	0.295	0.295	0.295	0.295	0.358	0.358	0.358
dc	Nominal Size	0.625	0.75	0.875	0.75	1	1.25	1.5	1	1.25	1.5	1.761	2	0.875	1	1.25
	min	0.617	0.742	0.867	0.742	0.992	1.242	1.492	0.992	1.242	1.492	1.742	1.992	0.867	0.992	1.242
	max	0.654	0.779	0.904	0.779	1.018	1.279	1.529	1.029	1.279	1.529	1.779	2.029	0.904	1.029	1.279
h	Nominal Size	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065
	min	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047
	max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08

Size		5/16×1-1/2	5/16×1-3/4	5/16×1-5/8	5/16×2	3/8×1-1/4	3/8×1-1/2	3/8×1-3/4	3/8×1-5/8	3/8×2	1/2×1-1/4	1/2×1-1/2	1/2×1-3/4	1/2×2	1/2×2-1/2
d	Nominal Size	0.348	0.348	0.348	0.348	0.41	0.41	0.41	0.41	0.41	0.535	0.535	0.535	0.535	0.535
	min	0.338	0.338	0.338	0.338	0.4	0.4	0.4	0.4	0.4	0.525	0.525	0.525	0.525	0.525
	max	0.358	0.358	0.358	0.358	0.42	0.42	0.42	0.42	0.42	0.545	0.545	0.545	0.545	0.545
dc	Nominal Size	1.5	1.75	1.625	2	1.25	1.5	1.75	1.625	2	1.25	1.5	1.75	2	2.5
	min	1.492	1.742	1.617	1.992	1.242	1.492	1.742	1.617	1.992	1.242	1.492	1.742	1.992	2.492
	max	1.529	1.779	1.654	2.029	1.279	1.529	1.779	1.654	2.029	1.279	1.529	1.779	2.029	2.529
h	Nominal Size	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065	0.065
	min	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047	0.047
	max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
