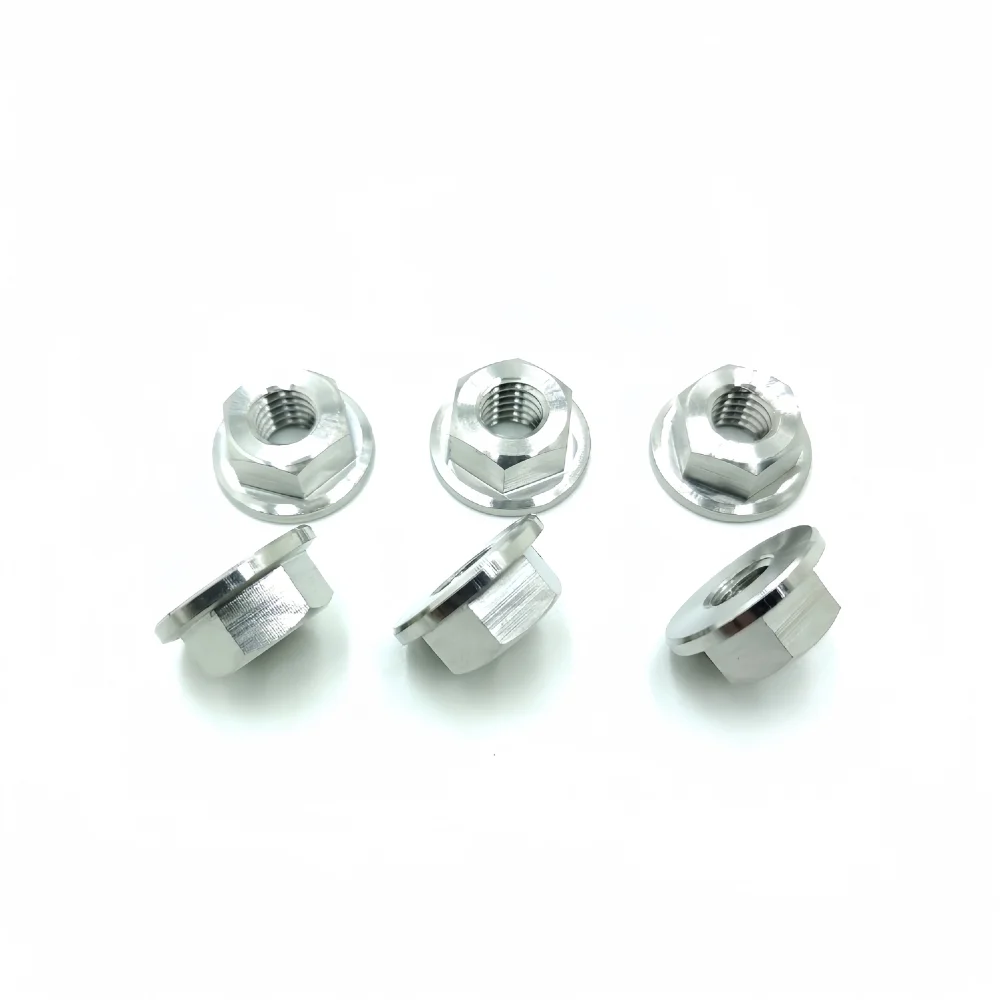

  • Titanium Hex Flange Nuts -TN-05
  • Titanium Hex Flange Nuts -TN-05

    Material Ti6AI4V (Gr.5) Titanium
    Nut Style Hex Flange
    Thread size M5 M6 M8 M10 M12 M14 M16 M20
    Height 5mm~20mm
    Thread Spacing Coarse Thread
    Standard DIN 6923 /ISO 4161 / DIN EN 1661 / ANSI/ASME B 18.2.4.4M / EN 1661 / NF E 25-406
    Color Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color

    Categories:Titanium Fasteners, Titanium Hex Head Bolts

    Titanium Hex Flange Nuts Specs

    Head Style Hex Flange Material Ti6AI4V (Gr.5) Titanium/Custom Quality Control 100% Fully Check
    Thread size M5 M6 M8 M10 M12 M14 M16 M20 Thread Spacing Coarse Thread MOQ Items in Stock (China):MOQ 1 PC
    Items in Stock (USA):MOQ 1 PC
    Items Out of Stock: MOQ 100 Pieces
    Height 5mm~20mm Threading Fully Threaded Customizable Colors Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color
    Standard DIN 6923 /ISO 4161 / DIN EN 1661 / ANSI/ASME B 18.2.4.4M / EN 1661 / NF E 25-406 LOGO Customizable Surface Treatment Pickling/Polishing/Anodizing/PVD Coloring



    Why Choose Our Titanium Hex Flange Nuts?

    1.Crafted from Premium Grade 5 Titanium Alloy:

    With Gr5 titanium alloy, a material renowned for its exceptional strength-to-weight ratio and corrosion resistance, typically reserved for aerospace applications. This choice ensures durability and performance.

    2.Rigorous Quality Control Process:

    Every single product undergoes an intensive quality assurance regimen, featuring no less than eight separate quality checks. This meticulous process culminates in a final inspection prior to packaging, guaranteeing that only flawless items make it to our customers.

    3.Custom Color and Surface Treatment Options:

    We offer the flexibility to personalize your product’s appearance through our custom color service. This is achieved by employing advanced surface treatment techniques such as anodizing and PVD.

    4.Features of Titanium Hex Flange Nuts Material:

    – High Strength and Low Density: Offers an excellent strength-to-weight ratio.

    – Excellent Corrosion Resistance: Suitable for use in harsh environments.

    – Good Thermal Resistance: Maintains performance at high temperatures.

    – Low Temperature Resistant: Retains toughness and mechanical properties even in cryogenic conditions.

    – Nonmagnetic and Nontoxic: Ideal for applications with high safety requirements.

    – Good Coefficient of Thermal Expansion: Maintains stable dimensions and shape.

    – Low Elastic Modulus: Provides a certain degree of elasticity and impact resistance.

    Thread Size D M5 M6 M8 M10 M12 M14 M16 M20
    P Pitch Coarse thread 0.8 1 1.25 1.5 1.75 2 2 2.5
    Fine thread 1 / / 1 1.25 1.5 1.5 1.5 1.5
    Fine thread 2 / / / -1 -1.25 / / /
    c min 1 1.1 1.2 1.5 1.8 2.1 2.4 3
    da min 5 6 8 10 12 14 16 20
    max 5.75 6.75 8.75 10.8 13 15.1 17.3 21.6
    dc max 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
    dw min 9.8 12.2 15.8 19.6 23.8 27.6 31.9 39.9
    e min 8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
    m max 5 6 8 10 12 14 16 20
    min 4.7 5.7 7.6 9.6 11.6 13.3 15.3 18.9
    mw min 2.2 3.1 4.5 5.5 6.7 7.8 9 11.1
    s max=nominal size 8 10 13 15 18 21 24 30
    min 7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.67
    r max 0.3 0.36 0.48 0.6 0.72 0.88 0.96 1.2
