| Material | Ti6AI4V (Gr.5) Titanium |
| Thread size | M8 M10 M12 M14 M16 M18… |
| Length | Customizable |
| Standard | DIN 938 |
| Color | Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color |
Categories:Titanium Fasteners, Titanium Hex Head Bolts
Titanium Threaded Bar Specs |
|||||||
|---|---|---|---|---|---|---|---|
| Material | Ti6AI4V (Gr.5) Titanium/Custom | Thread Type | Metric | Quality Control | 100% Fully Check | ||
| Thread size | M3~M52 | Thread Spacing | Coarse Thread/Fine Thread | Customizable Colors | Natural Color/Black/Burnt Blue/Golden/Rainbow/Purple/Green/Customized color | ||
| Length | Customizable | Hardness | Rockwell C36 | Surface Treatment | Pickling/Polishing/Anodizing/PVD Coloring | ||
| Standard | DIN 938 | LOGO | Customizable | MOQ | Items in Stock (China):MOQ 1 PC Items in Stock (USA):MOQ 1 PC Items Out of Stock: MOQ 100 Pieces |
||

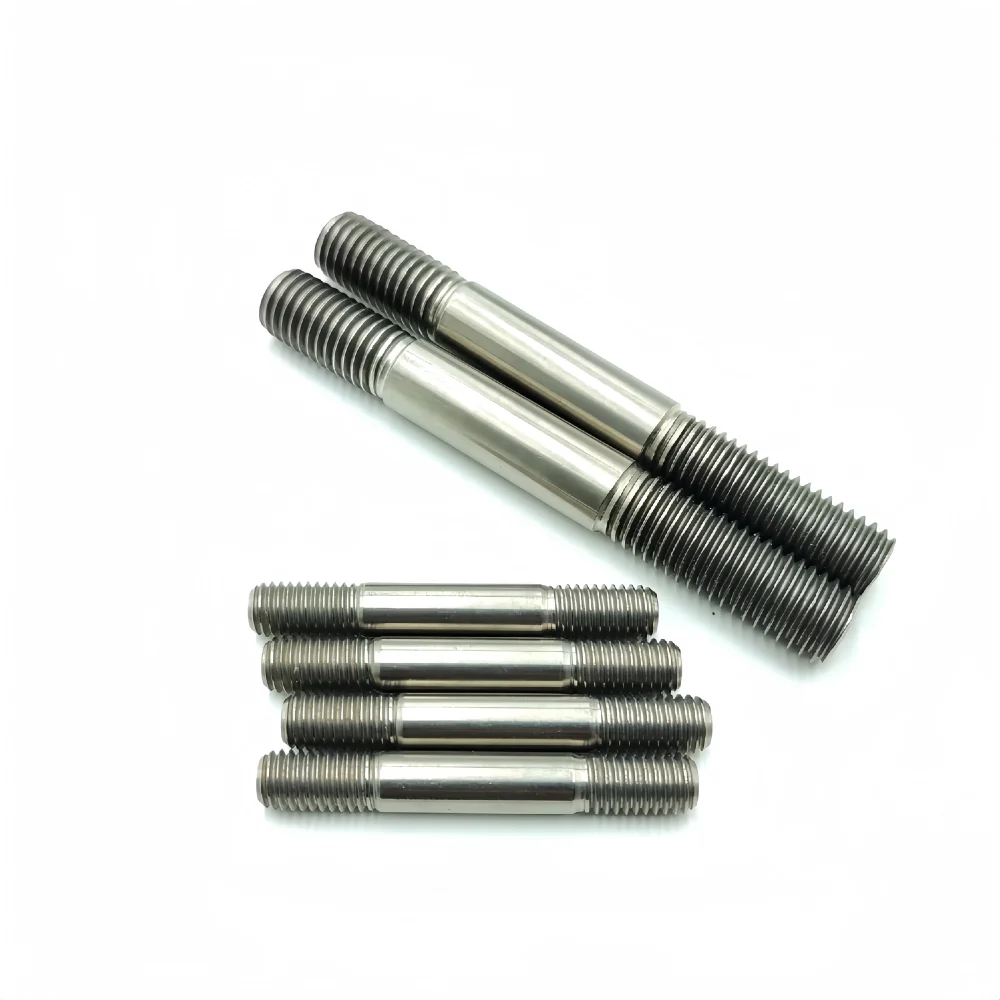

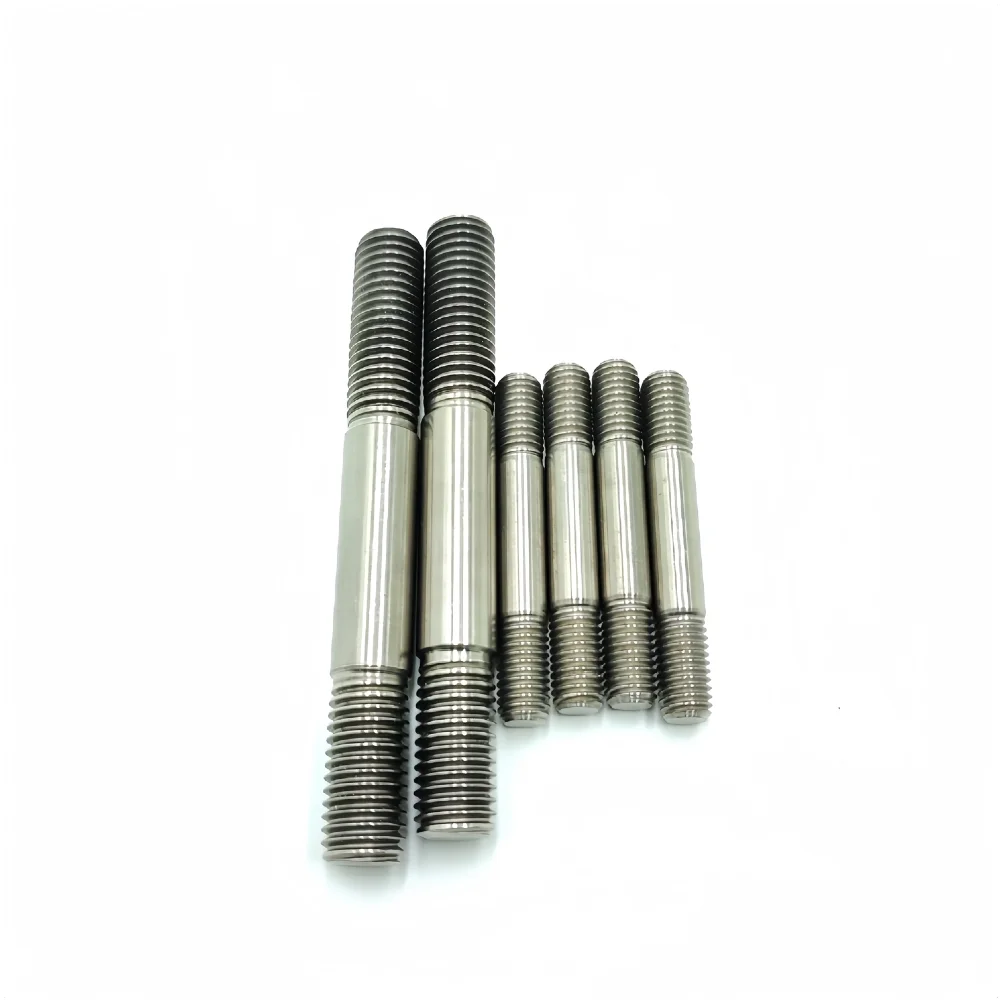

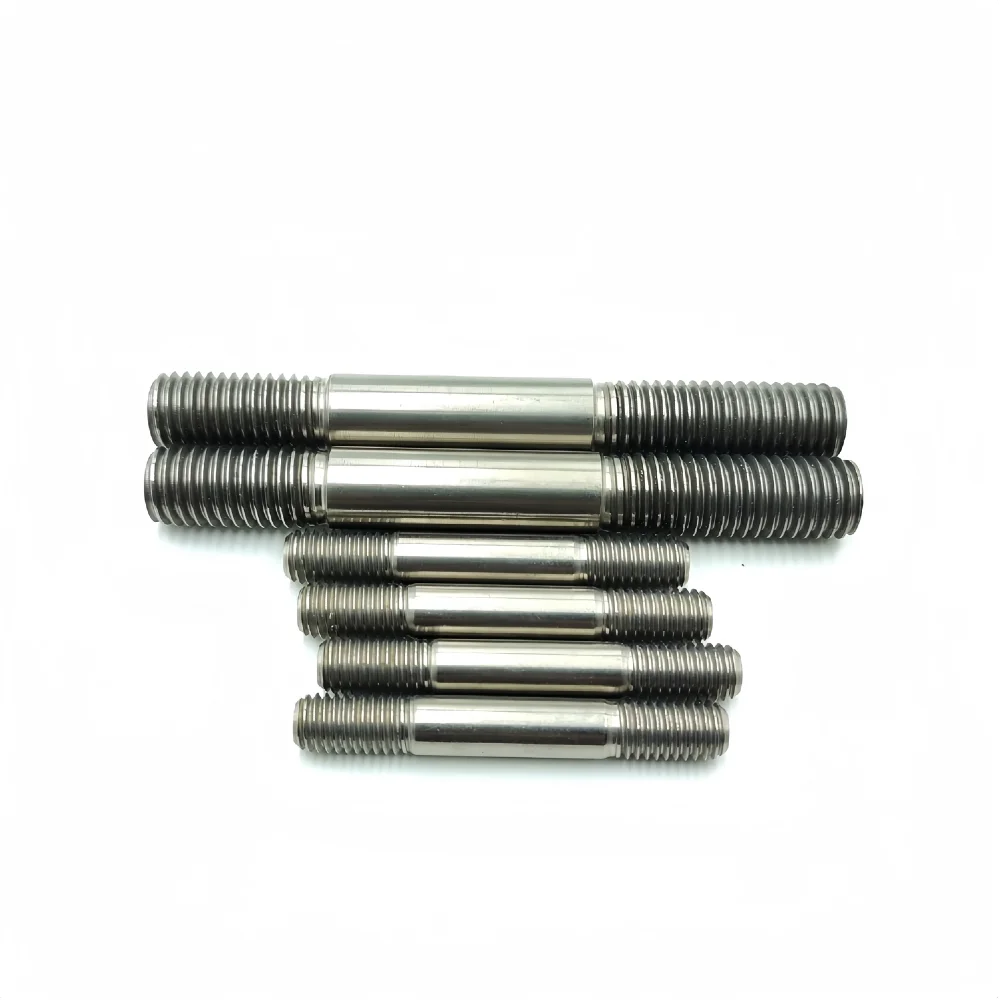

Titanium Threaded Rods are meticulously crafted from 6AL/4V (TC4) Titanium Alloy, Grade 5. This choice ensures exceptional strength, resistance to rust and deformation, and a prolonged lifespan.
Designed with versatility in mind, our rods offer customizable dimensions and color options to perfectly fit your unique application requirements.
The rods undergo a selection of surface treatments including Pickling, Polishing, Anodizing, and PVD Coloring, enhancing both aesthetics and functionality.
Boasting full threading, these rods feature crisp, clear threads, a hallmark of superior craftsmanship. They are invaluable for securing, reinforcing loose chains, or reconnecting damaged parts with precision and reliability.
– High Strength and Low Density: Offers an excellent strength-to-weight ratio.
– Excellent Corrosion Resistance: Suitable for use in harsh environments.
– Good Thermal Resistance: Maintains performance at high temperatures.
– Low Temperature Resistant: Retains toughness and mechanical properties even in cryogenic conditions.
– Nonmagnetic and Nontoxic: Ideal for applications with high safety requirements.
– Good Coefficient of Thermal Expansion: Maintains stable dimensions and shape.
– Low Elastic Modulus: Provides a certain degree of elasticity and impact resistance.
| Thread Size d | M3 | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | ||
| P | Pitch | Coarse thread | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
| Fine thread-1 | – | – | – | – | – | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Fine thread-2 | – | – | – | – | – | – | – | 1.5 | – | – | – | – | ||
| b1 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||
| b | L≤125 | 12 | 14 | 16 | 18 | 20 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | |
| 125＜L≤200 | 18 | 20 | 22 | 24 | 26 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | ||
| L＞200 | – | – | – | – | – | – | 45 | 49 | 53 | 57 | 61 | 65 | ||
| ds ② | max | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
| min | 2.86 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | ||
| x1 | 1.25 | 1.75 | 2 | 2.5 | 2.5 | 3.2 | 3.8 | 4.3 | 5 | 5 | 6.3 | 6.3 | ||
| x2 | 0.7 | 0.7 | 0.9 | 1 | 1.25 | 1.6 | 1.9 | 2.2 | 2.5 | 2.5 | 3.2 | 3.2 | ||
| Weight of per 1000 steel products(≈kg) | – | – | – | – | – | – | – | – | – | – | – | – | ||
| Thread Size d | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) ② | M42 | (M45) | M48 | (M52) | ||
| P | Pitch | Coarse thread | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Fine thread-1 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Fine thread-2 | – | – | – | – | – | – | – | – | – | – | – | ||
| b1 | 22 | 24 | 25 | 30 | 32 | 35 | 38 | 42 | 45 | 48 | 52 | ||
| b | L≤125 | 50 | 54 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 110 | |
| 125＜L≤200 | 56 | 60 | 66 | 72 | 78 | 84 | 90 | 96 | 102 | 108 | 116 | ||
| L＞200 | 69 | 73 | 79 | 85 | 91 | 97 | 103 | 109 | 115 | 121 | 129 | ||
| ds ② | max | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | |
| min | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 38.61 | 41.61 | 44.61 | 47.61 | 51.54 | ||
| x1 | 6.3 | 7.5 | 7.5 | 9 | 9 | 10 | 10 | 11 | 11 | 12.5 | 12.5 | ||
| x2 | 3.2 | 3.8 | 3.8 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6.3 | 6.3 | ||
| Weight of per 1000 steel products(≈kg) | – | – | – | – | – | – | – | – | – | – | – | ||
